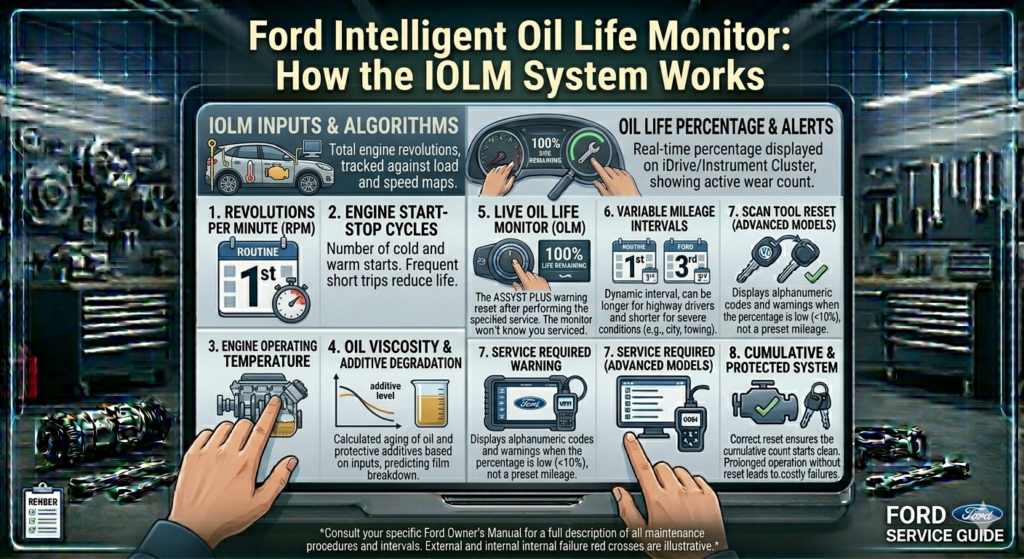

Ford Intelligent Oil Life Monitor: How the IOLM System Works

Ford Intelligent Oil Life Monitor the IOLM System. Ford is the backbone of the American automotive industry, with a lineup ranging from the fuel-efficient Fiesta to the legendary F-150. To ensure these diverse engines remain reliable, Ford utilizes a sophisticated system called the Intelligent Oil Life Monitor (IOLM). Unlike older vehicles that relied on a simple mileage sticker on the windshield, modern Fords use an advanced algorithm to determine exactly when your oil has lost its protective properties. If you see the message “Change Oil Soon” or “Oil Change Required” on your Ford’s information display, it is not a random alert—it is a data-driven command from your engine’s computer.

In this technical guide, we will explore the inner workings of Ford’s IOLM system, the difference between “Normal” and “Severe” service, and why high-quality oil is the only thing standing between your EcoBoost turbocharger and a catastrophic failure.

The Evolution of Ford’s Oil Monitoring

Ford Intelligent Oil Life Monitor the IOLM System. Ford vehicles generally fall into two categories regarding oil maintenance:

Standard Oil Life Monitor (Early 2000s – 2010): A mileage-based system that counts down from 5,000 or 7,500 miles. It does not account for driving habits; it simply measures distance.
Intelligent Oil Life Monitor (IOLM) (2011 – Present): This system does not use a physical sensor to “sample” the oil. Instead, it uses a complex mathematical model based on the engine’s operating conditions.

1. How the IOLM System Calculates Oil Life

The IOLM system is integrated into the Powertrain Control Module (PCM). It constantly monitors several key variables to estimate the chemical degradation of the motor oil:

Engine Temperatures: Frequent cold starts (below 32°F / 0°C) prevent the oil from reaching the temperature needed to evaporate water and fuel. The IOLM will shorten your interval significantly in winter.
Towing and Hauling: If you are towing a trailer with an F-150 or Super Duty, the engine generates significantly more heat. The system detects this increased load and reduces the oil life percentage faster.
Idling Time: For fleet vehicles or police interceptors, the engine may “run” for hours without the wheels moving. The IOLM tracks these engine hours to ensure the oil isn’t over-stressed while the odometer stays still.
Ethanol Content (Flex Fuel): If you use E85 fuel, the combustion process produces more moisture. The IOLM accounts for the type of fuel used in its degradation calculations.

2. The EcoBoost Factor: Why Oil Quality is Non-Negotiable

Ford Intelligent Oil Life Monitor the IOLM System. Most modern Fords are powered by EcoBoost engines. These are highly efficient, direct-injected, turbocharged powerplants. However, they are incredibly demanding on their lubricant.

Turbocharger Heat: The turbochargers in an EcoBoost engine are cooled and lubricated by engine oil. When the engine is shut off after a hard drive, the oil sitting in the turbo can reach temperatures that cause “coking” (turning into hard carbon). The IOLM system is programmed to ensure you change your oil before these carbon deposits can clog the turbo’s oil feed lines.
Timing Chain Stretch: Older 3.5L and 2.7L EcoBoost engines were sensitive to timing chain wear if the oil was not changed on time. Clean oil keeps the hydraulic tensioner functioning properly. If you ignore the “Oil Change Required” light, you risk a stretched timing chain, leading to a “rattle” on cold starts and expensive repair bills.

3. Understanding Ford’s Oil Specifications

Ford Intelligent Oil Life Monitor the IOLM System. To ensure the IOLM remains accurate, Ford requires oils that meet their specific WSS-M2C engineering standards.

WSS-M2C946-A (5W-30): Common for EcoBoost engines. It focuses on preventing “Low-Speed Pre-Ignition” (LSPI), which can crack pistons in turbocharged engines.
WSS-M2C948-B (5W-20): Standard for many naturally aspirated engines.
Motorcraft Synthetic Blend: Ford factory-fills most vehicles with a high-quality synthetic blend. However, for maximum protection in turbocharged models, many technicians recommend moving to a Full Synthetic oil that meets Ford’s specifications.

4. How to Reset the Ford Oil Life Monitor

Ford Intelligent Oil Life Monitor the IOLM System. Once the oil has been changed, you must reset the percentage to 100%. The process is usually found within the steering wheel menus:

Turn the ignition to ON (Engine OFF).
Using the directional pads on the steering wheel, go to “Settings” or “Vehicle.”
Select “Oil Life Management” or “Oil Life Reset.”
Press and hold the OK button until the system says “Reset Successful” and the bar reaches 100%.

Note: On some Ford Transit vans or older F-150s, you may need to use the “Gas and Brake Pedal” method: Press both pedals to the floor for 20 seconds while the ignition is on until the message display confirms the reset.

Ford Maintenance Interval Summary Table

Driving Condition	Expected Mileage	IOLM Behavior
Normal (Highway/Commute)	7,500 – 10,000 Miles	Slowest degradation.
Severe (City/Short Trips)	5,000 – 7,499 Miles	Faster degradation due to fuel/moisture.
Extreme (Towing/Off-Road)	3,000 – 4,999 Miles	Rapid degradation due to heat and load.

The “Oil Life” Warning Stages

Ford’s system gives you plenty of warning before the situation becomes critical:

80% – 10%: No warning light. You can view the percentage in the “Settings” menu.
5% (Change Oil Soon): The first warning appears on the dash. You should schedule your service within the next 500 miles.
0% (Oil Change Required): The oil has reached its calculated end-of-life. Driving beyond this point puts the engine at risk of sludge formation and turbocharger wear.

Conclusion: Smart Maintenance for Modern Engines

Ford Intelligent Oil Life Monitor the IOLM System. The Ford Intelligent Oil Life Monitor is a powerful tool designed to protect your investment. By moving away from arbitrary mileage counts and focusing on real-world driving data, Ford ensures that your EcoBoost turbochargers and timing components remain lubricated under all conditions.

Whether you are hauling a heavy load in a Super Duty or navigating city traffic in an Explorer, respecting the “Oil Change Required” message is the simplest way to ensure your Ford reaches the 200,000-mile mark. Remember: the computer knows your driving habits better than a sticker on the windshield ever could. Trust the IOLM, use the correct Ford-spec oil, and keep your Ford running like new.
